Shenzhen Gaoxing Electric Appliance Co., Ltd
We’re committed to the R&D, production, and sales of high-precision and low-temperature co-effective rate(TCR) resistors, shunts and electron beam welded alloy strip materials.
Our first-class resistor production equipment , electron beam welding production lines and technology enable us the leading manufacturer in China
As a high-tech enterprise, our company has passed the EU environmental protection requirements ROHS, SVHC, California 65, TSCA, CE certification, and the company has passed ISO9001, IATF16949, specialized and new enterprises, 3A, State Grid testing standards, etc. Quality is our eternal pursuit!
PRODUCT CENTER

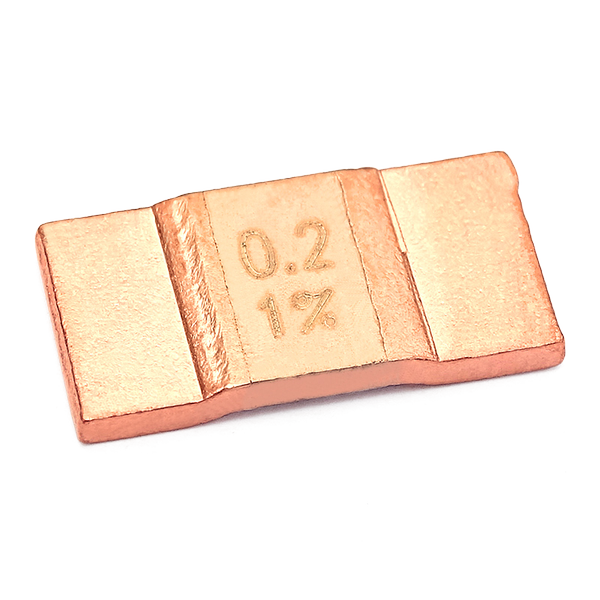

Bare Alloy Resistor
Size: 3920, 5930, 4026, 3824, 3821,
2512, 1206, 1216
Series: GLRS, GVB, GBH, GRS, etc.
Power: 1W~15W
Tolerance: ±0.1% ~±0.5% ~±1% ~±5%
Resistance: 0.05mΩ ~ 50mΩ
TCR(ppm/C): 10PPM ~150PPM
In-house Developed and Customizable

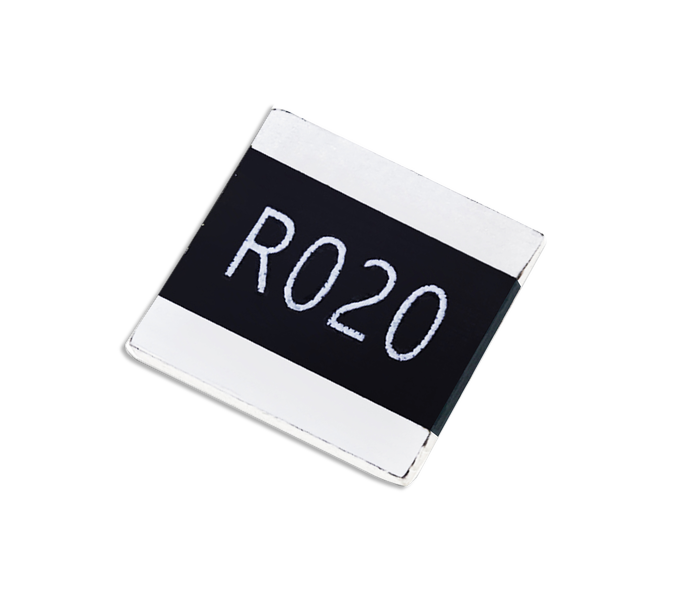

Encapsulated Alloy Resistor
Series Size: 1206, 2512, 2728, 4527, 2817, 3637
Series: GCG, GJLR, GYLR, GLR, GLLR, etc.
Power: 1/2W~7W
Tolerance: ±0.1%~±0.5%~±1%~±5%
Resistance: 0mΩ ~ 500mΩ
TCR(ppm/C): 10PPM ~150PPM
In-house Developed and Customizable

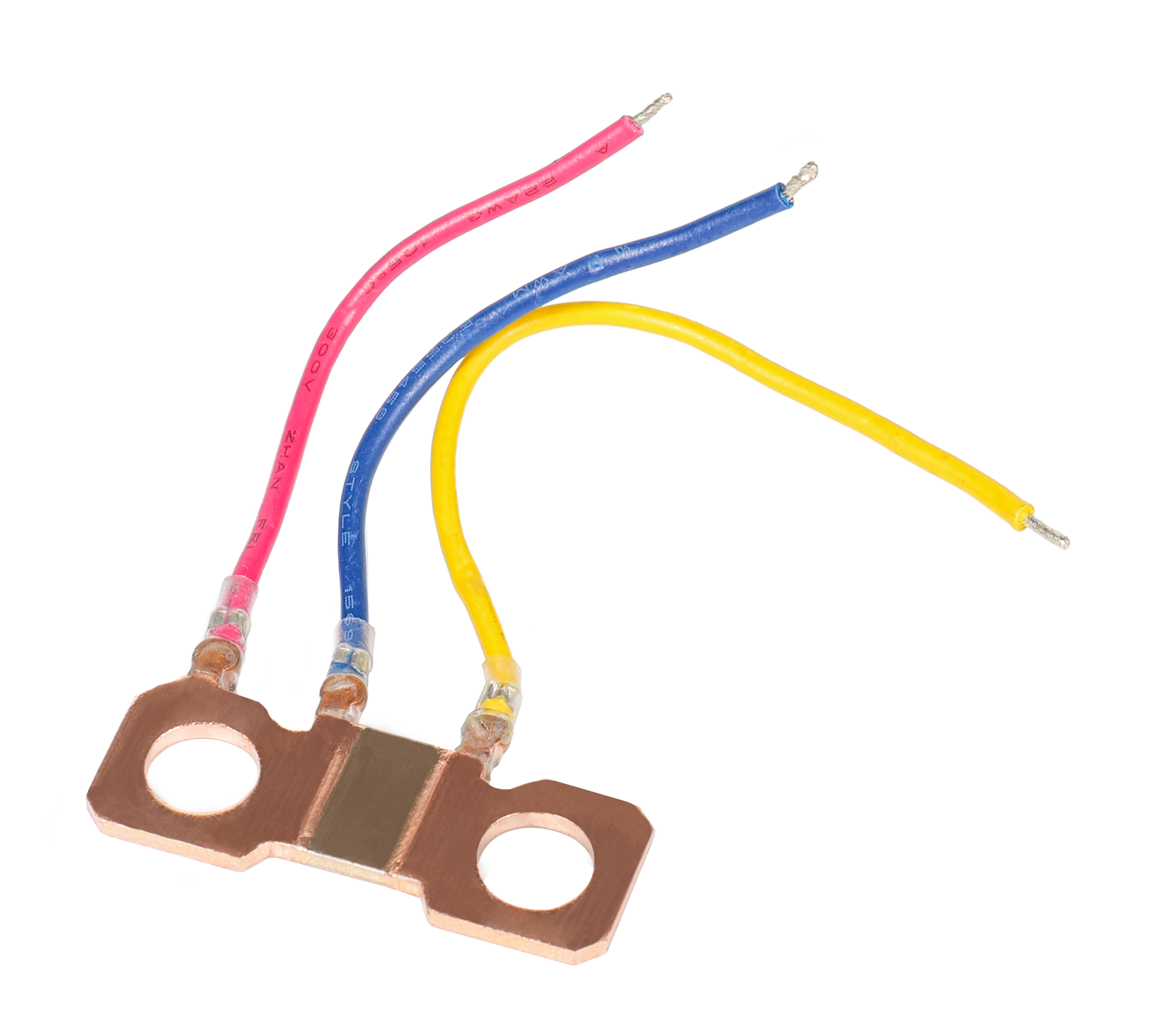

High Current Shunt Resistor
Current: 5A ~60000A
Rated Voltage Drop: 15mV~100mV
Tolerance: ±0.05% ~ ±0.1% ~ ±0.5% ~±1%~±5%
Resistance: 50μΩ ~ 3.75mΩ
TCR(ppm/°C): 5PPM ~ 100PPM
In-house Developed and Customizable
Through Hole Metal Resistor
Series: GLR, GSRB, GK, GM, ETC.
Power: 1W~7W
Tolerance: ±0.1% ~±0.5% ~±1%~ ±5%
Resistance: 0.2mΩ ~ 500mΩ
TCR(ppm/C): 20PPM~150PPM
In-house Developed and Customizable
Copper Bar PCB Shunt Jumper
Length range: 3.0~100mm
Width range: 1.0~10mm
Thickness range: 0.3~5.0mm
Current Load Capacity:100A~600A
Operating Temperature: -55℃~+170°℃
In-house Developed and Customizable

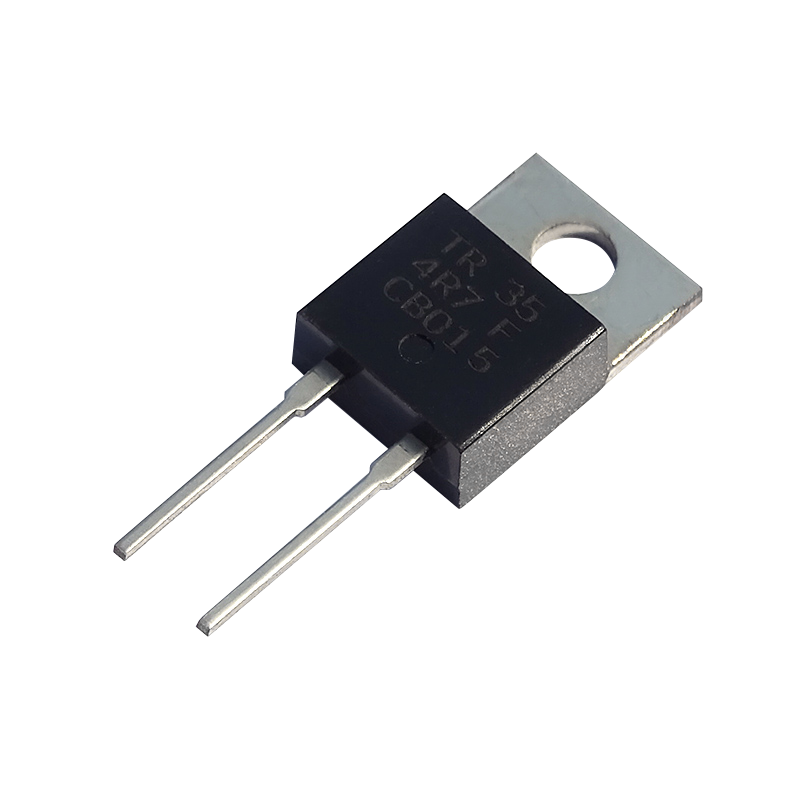

High Power Resistor
Series: To-263 To-247 To-220
Power: 20W~100W
Tolerance: ±0.5%~±1%~±5%
Resistance: 10mΩ ~ 100ΚΩ
TCR(ppm/C): 50PPM ~300PPM
In-house Developed and Customizable

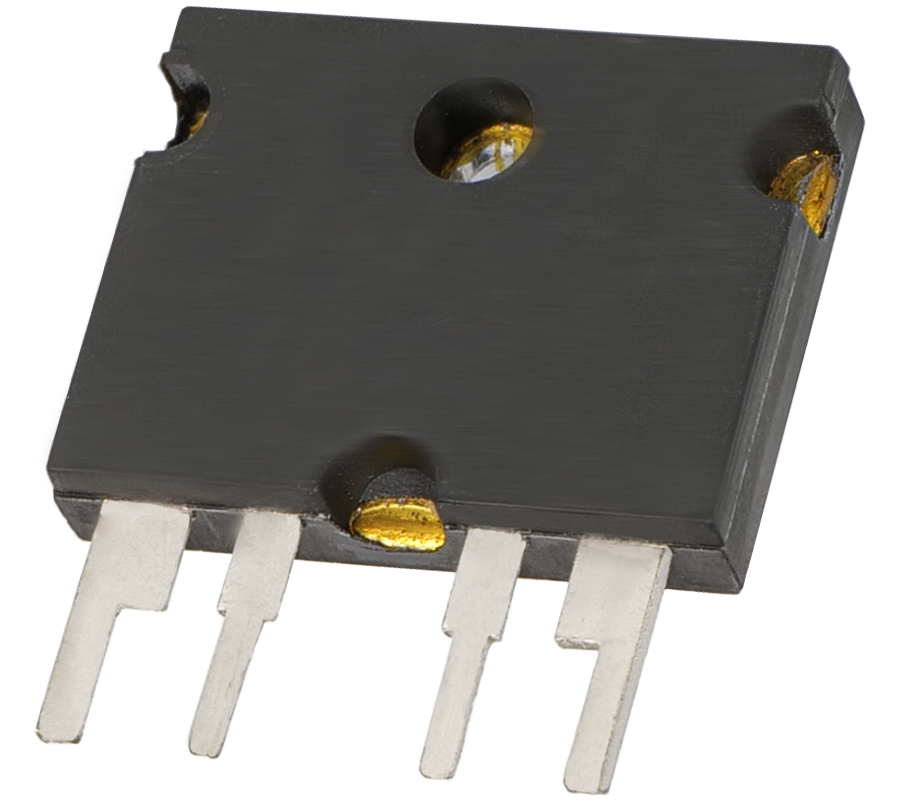

High Precision Resistor
Power: 3W~ 10W
Resistance: 0.05mΩ ~ 2Ω
Tolerance: ±0.5% ~ ±1%~±5%
TCR(ppm/°C): 5PPM ~ 25PPM
Heatsink is required at power ratings above 5W
In-house Developed and Customizable
MB Series Meter Shunt
Rated Current: 5A~5000A
Rated Voltage Drop: 10mV~100mv
Tolerance: ±0.1%~±0.5% ~±1%~±5%
Resistance: 1μΩ~ 1mΩ
TCR(ppm/C): 10PPM~200PPM
In-house Developed and Customizable
The Best Choice for Your Project
Industry
Industrial control, electrial mechanical, energy storage, power supply, frequency converter, EV Charging, electrical power tools, etc.
Automotive
Automotive electronics, BMS, Control Units, Intelligent cockpit,Lighting, HVAC, EPS, OBS, EPB，EV charging, etc.
Electrical
Power Widely used in wind power generation, solar power generation and other fields
Measurement and meters
Smart meters, measurement and test instruments and electrical meters
Intelligent equipment
Battery intelligent equipment, intelligent equipment, hydrogen energy equipment, laser precision and machine vision
Consumer electronics
Medical,Tel Communication,PC,home appliances, audio and video, power tools,
First-class Manufacturing Technology and Strict Quality Control
